Aviation Warning Light Specifications: The Definitive Guide to Compliance and Performance
In the complex ecosystem of air navigation, aviation warning light specifications form the foundation of aerial hazard mitigation. These meticulously crafted technical standards ensure consistent visual communication between ground structures and aircraft operators. This article provides a comprehensive examination of current aviation warning light specifications, their evolution, and the critical parameters that define effective obstacle illumination.
Core Regulatory Frameworks
1. International Standards (ICAO Annex 14)
Light intensity classifications (Low/Medium/High)
Flash rate requirements (20-60 flashes per minute)
Color chromaticity coordinates (precise red/white thresholds)
2. FAA Technical Requirements (AC 70/7460-1L)
Photometric distribution patterns
Vertical/horizontal beam angles

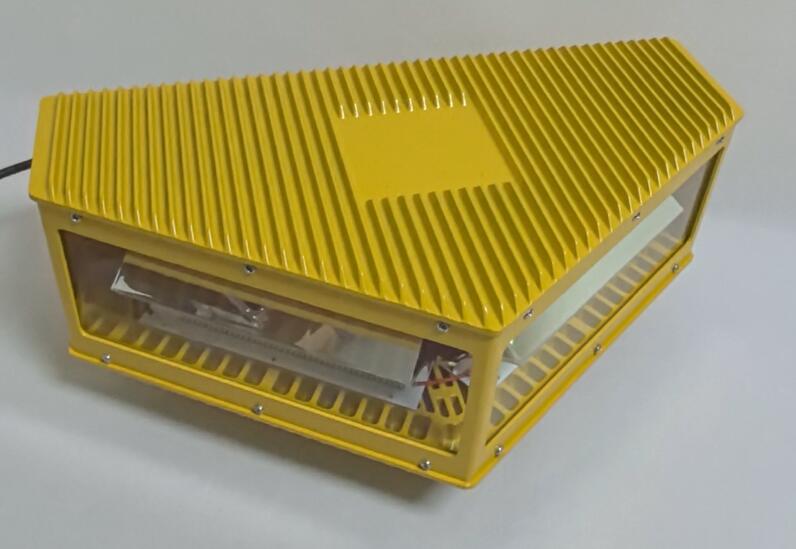

| aviation warning light specifications |
Day/night operational thresholds
3. European Aviation Safety Agency (EASA CS-ADR-DSN)
Environmental durability testing
Electromagnetic compatibility
Power supply redundancy
Critical Performance Parameters
1. Photometric Characteristics
Parameter Day Operation Night Operation
Intensity 20,000-200,000 cd 2,000-20,000 cd
Beam Spread 3°-10° vertical 10°-30° vertical
Flash Duration 40-100 ms 60-200 ms
2. Physical Specifications
Housing: MIL-STD-810G compliant
| aviation warning lights specifications |
Operating Temperature: -40°C to +55°C
Waterproof Rating: IP66 minimum
Wind Resistance: 200 km/h sustained
Lighting System Configurations
1. Structure Height-Based Requirements
<45m: Low-intensity red (L-810)
45-150m: Medium-intensity white/red (L-865/L-864)
150m: High-intensity white (L-856)
2. Special Application Systems
Wind turbine-specific configurations
Temporary obstacle lighting
Offshore platform solutions
Emerging Technology Standards
1. Next-Generation LED Specifications
Minimum CRI: 80
Color Consistency: ±0.005 Cx,Cy
Lumen Maintenance: >90% at 60,000 hours
2. Smart Lighting Parameters
Remote monitoring protocols
Automated fault reporting
Predictive maintenance interfaces
3. Sustainable Design Criteria
Solar power efficiency standards
Dark-sky compliant designs
Wildlife-friendly spectrums
Compliance Verification
1. Certification Testing
Photometric laboratory validation
Environmental stress testing
Long-term reliability trials
2. Field Performance Monitoring
Periodic intensity measurements
Beam alignment verification
Color consistency checks
3. Documentation Requirements
LM-79 test reports
IES files for lighting simulations
Maintenance history logs
Future Specification Trends
1. Dynamic Lighting Systems
Aircraft-density responsive intensity
Weather-adaptive flash patterns
Conditional lighting activation
2. Integrated Detection Systems
ADS-B synchronization
Drone visibility enhancement
Collision avoidance integration
3. Advanced Material Standards
Self-cleaning optical surfaces
Impact-resistant composites
Vibration-dampening mounts
Aviation warning light specifications continue to evolve in response to technological advancements and changing airspace requirements. The current generation of standards represents a careful balance between visibility assurance and environmental consideration, while future developments promise smarter, more responsive systems. Understanding these specifications is essential for engineers, regulators, and operators alike, as they form the technical backbone of aerial collision prevention. As airspace becomes increasingly congested, the precision and reliability of these specifications will play an ever more critical role in global aviation safety.
