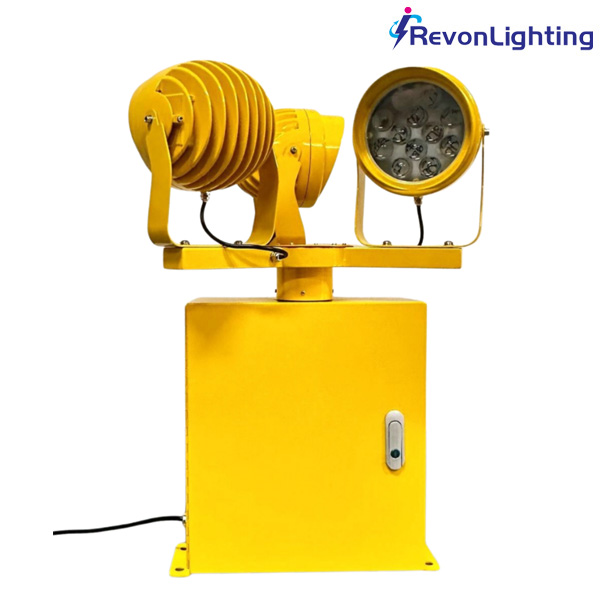

Heliport rotating beacon aircraft rotating beacon rotating beacon aviation led rotating beacon light
Detailed introduction
A heliport rotating beacon, also known as an aircraft rotating beacon or aviation LED rotating beacon light, is a high-intensity visual signal used to identify heliports, airfields, and aviation facilities during night or low-visibility conditions. Emitting a bright, rotating LED beam, it helps guide pilots to landing zones with precision and enhances situational awareness. Designed for durability and energy efficiency, these beacons are built to withstand harsh weather environments. Commonly used in commercial, military, and private aviation, they play a critical role in improving operational safety and navigation reliability.
Overview:
AO-HP-R1 A heliport rotating beacon, also known as an aircraft rotating beacon or aviation LED rotating beacon light, is a key visual aid for identifying heliports and airfields at night or in low-visibility conditions. It emits a bright, rotating LED beam to guide pilots safely to landing zones. Built for durability and energy efficiency, these beacons are essential in commercial, military, and private aviation, ensuring reliable navigation and enhanced airfield safety.
Compliance:
1. ICAO Annex 14 Volume I 5.3.3
2. FAA L-801H AC 150/5345-12 ; FAA L-802H AC 150/5345-12;
Features:
1. High-Efficiency LED Technology – Equipped with ultra-bright, long-life LED modules that ensure outstanding visibility while minimizing energy consumption.
2. Dual Power Compatibility – Supports both DC (12–48V) and AC (100–265V, 50/60Hz) power inputs, allowing flexible and easy installation.
3. Maintenance-Free Operation – Engineered for continuous, reliable performance with no need for regular maintenance.
4. Permanently Lubricated System – All moving components are factory-lubricated for life, ensuring smooth, long-lasting operation.
5. Burnout-Protected Motor – Features an impedance-protected motor to prevent overheating and ensure dependable, long-term functionality.
6. Optimized Flash Pattern – Rotates at 12 RPM, generating 36 flashes per minute for clear, consistent visual signaling.
7. Rugged Weatherproof Housing – Built with stainless steel and a powder-coated yellow finish, offering excellent corrosion resistance and durability in harsh environments.
8. Precision Optical Design– Specially designed optics provide a focused beam that enhances visibility while minimizing light pollution.
9. Triple-LED Configuration – Integrates white, aviation green, and yellow LEDs to accommodate a wide range of application needs.
Specification:
|
Product Name |
Heliport rotating beacon aircraft rotating beacon rotating beacon aviation led rotating beacon light |
|
Mode NO.: |
AO-HP-R1 |
|
Color: |
White, Green and Yellow 3 colors (other colors available) |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>25000cd |
|
Operation mode: |
Steady burning |
|
Installation type: |
Surface mounting |
|
Flashing Characteristics:
|
12RPM(Revolutions Per Minute), 36 flashes per minute
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Each LED head <50W，system power>200W |
|
Circuit Protection: |
Integrated |
|
Helipad Light Material: |
lens and Powder coated stainless steel |
|
Weight(kg): |
25kg |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
/ |

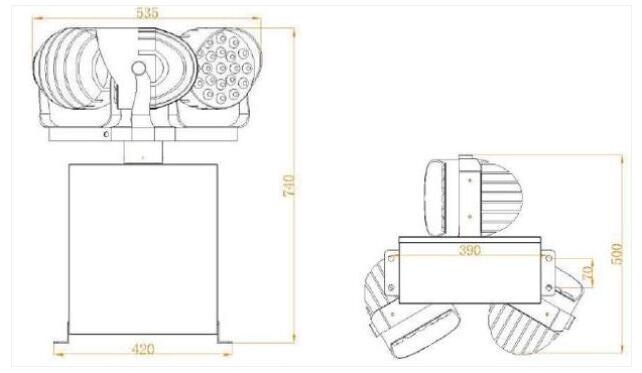

Dimension & Installation:
Applications:
Heliport rotating beacons, also known as aircraft rotating beacons or aviation LED rotating beacon lights, are widely used to identify heliports, airstrips, and aviation facilities during night or low-visibility operations. They provide clear, rotating light signals to guide pilots safely to landing zones. Ideal for commercial, military, and emergency use, these beacons enhance situational awareness, support safe navigation, and ensure airfield visibility in all weather conditions.
